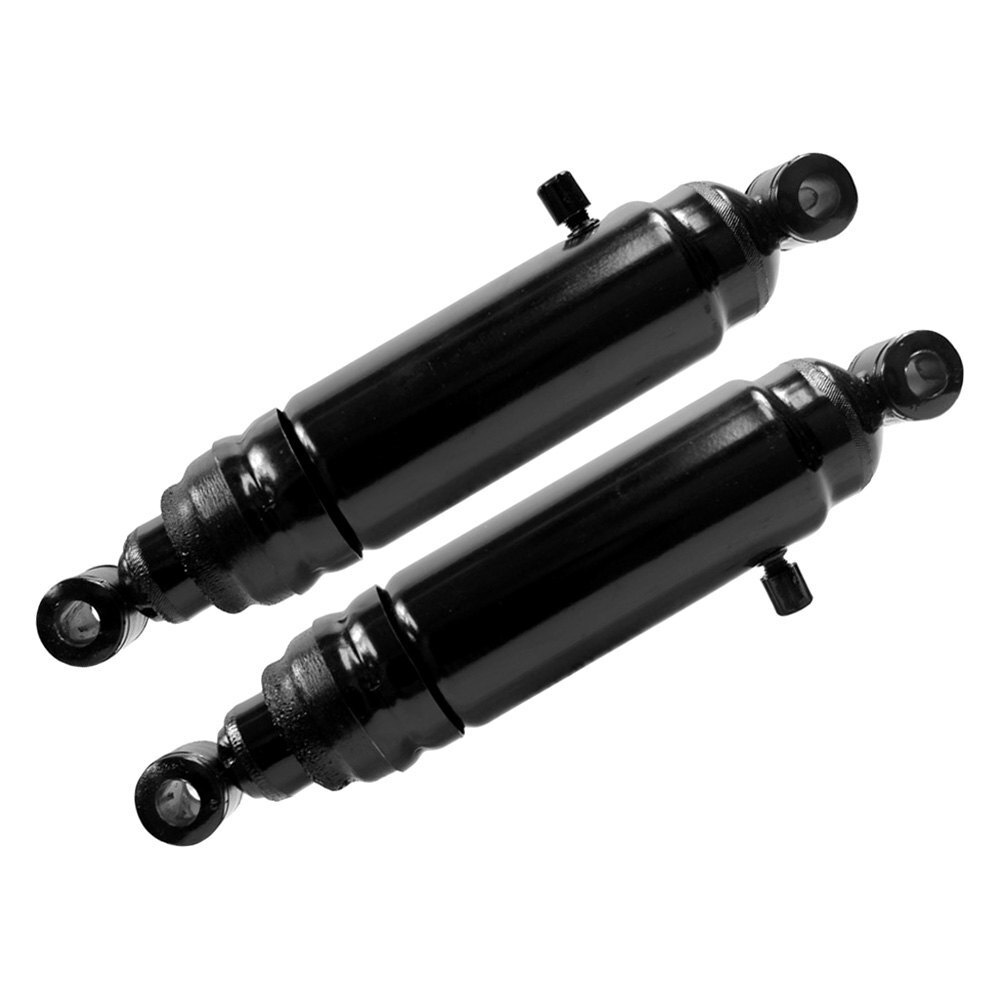

Monroe Max Air shock absorbers are ideal for vehicles that haul heavy loads or tow trailers. They're designed to maintain vehicle height and can be inflated or deflated as needed, from 20 psi to 150 psi with the vehicle loaded. If you're hauling heavy, try Monroe Max Air shock absorbers to get the job done. These adjustable shocks are available for fitment on hundreds of specific vehicle applications.

Features:

• All-weather fluid that contains special modifiers to ensure smooth rod reaction
• Full displaced valving on both the compression and rebound for a comfortable ride
• Sintered iron piston that enhances durability for long service life
• Lubricated air sleeve that reduces friction and provides smoother operation during suspension movement
• Hardened and precision-ground 1/2 in. piston rod for consistent performance
• Large-volume air chamber that will hold a maximum of 150 psi

Suits many other early Mopars etc - Ask us to check your application.

Extended Length (IN) 21.25

Extended Length (MM) 539.8

Lower Mount Type - Loop Bushing Mount - 11/16" Bushing ID X 1.9/16" Bushing OAL

Upper Mount Type - Loop Bushing Mount - 11/16" Bushing ID X 1.9/16" Bushing OAL

Compressed Length (IN) 13.125

Compressed Length (MM) 333.4

Travel Length (IN) 8.125

Travel Length (MM) 206.4

Shock Absorber Rod End Measuring Point - Center of Loop

Shock Absorber Body End Measuring Point - Center of Loop
