Universal Multi-Level Elliptical Oval VHX Instrument:VHX-1016-X-X

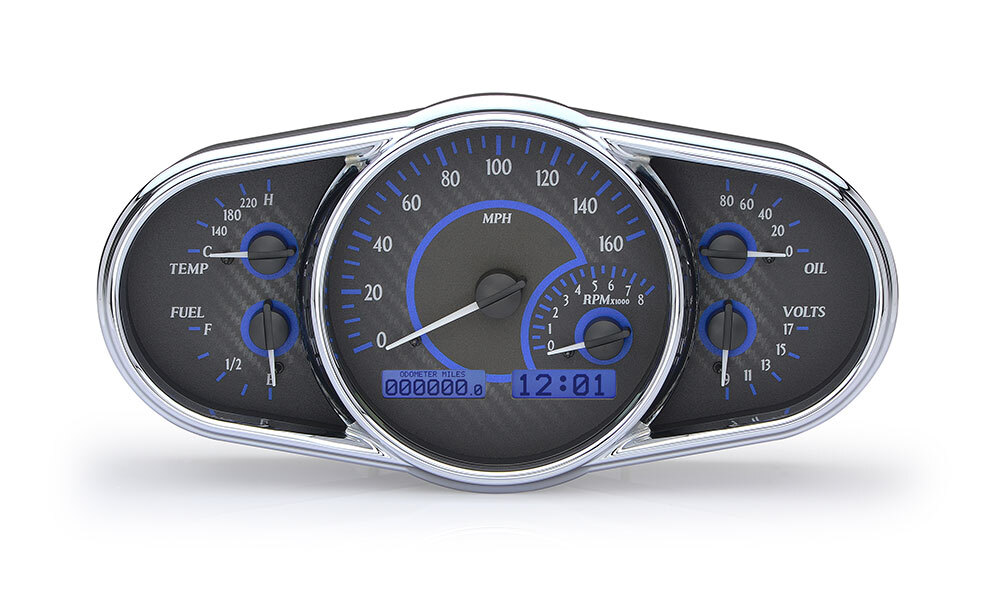

Based on the wildly popular VFD3-1009, this package finds itself at home in many custom-built dashboards. A unique, ‘stepped' bezel gives a one-of-a-kind three dimensional look that brings out the quality of the show chrome plating. Installing from the front side of your flat dash, the VHX-1016 requires 10 1/8” x 5” of real estate and 2” of depth on the backside. Cutting is required (9.81" x 4.75" cutout), with your choice of Silver Alloy or Carbon Fiber face styling, illuminated in either red or blue!

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

GAUGES

SPEEDOMETER: ·
  • 0 -160 MPH (or metric version 0- 255 kmh)

TACHOMETER: ·
  • 0- 8,000 RPM

OIL PRESSURE:·
  • 0- 80 psi

WATER TEMP: ·
  • 100- 260ºF (or metric version 40- 120ºC)

FUEL LEVEL: ·
  • E, 1/4, 1/2, 3/4, F

VOLTMETER: ·
  • 9- 17 VDC

LIGHTING:· Back-lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

MESSAGE CENTERS

STANDARD DISPLAYS
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
  • Clock (12 hour)
PERFORMANCE METERS
  • 0- 60 MPH Timer (0- 100 kmh)
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall

GAUGES

  • Speedometer (0- 255 MPH/kmh)
  • Tachometer (0- 9,900 RPM)
  • Oil Pressure (0-100 psi displayed in 1 psi increments)
  • Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
  • Voltmeter (9- 17 VDC)
  • Fuel Level (0-99% full)

LIGHTING

  • Auto-contrasting LCD display for optimal view in the brightest of sunlight.
  • LED backlit at night to match/ complete the look at night.

BUILT-IN INDICATORS

• TURN SIGNALS (L/R)
• HIGH BEAM
• CHECK ENGINE
• PARKING BRAKE
• CRUISE CONTROL
• GEAR POSITION*
• 4 X 4 INDICATOR
• WAIT TO START

INCLUDED SENSORS & HARDWARE

COMPONENT SPECIFICATIONS
WATER TEMP 1/8" NPT, ground isolated sensor with a 10 ft harness.
OIL PRESSURE 1/8" NPT solid state sensor with a 10 ft harness.
SPEED SENSOR Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part #130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)
BUSHINGS Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
CONTROL BOX 5.5" x 3.5" x 1"

CALIBRATION

Dakota Digital instruments are programmed by pushbutton. Use the included buttons to calibrate your speedometer, set cylinder count, and fuel level. Access all secondary data via the Digital Message Centers.

  • Universal Fitment
SKU DKD-VHX-1016-X-X
Barcode # #N/A
Brand Dakota Digital
Shipping Weight 3.1818kg
Shipping Width 0.457m
Shipping Height 0.254m
Shipping Length 0.508m
Shipping Cubic 0.058967624m3
