Universal 6 Gauge Competition Analog HDX Instruments:XDX-2200-X

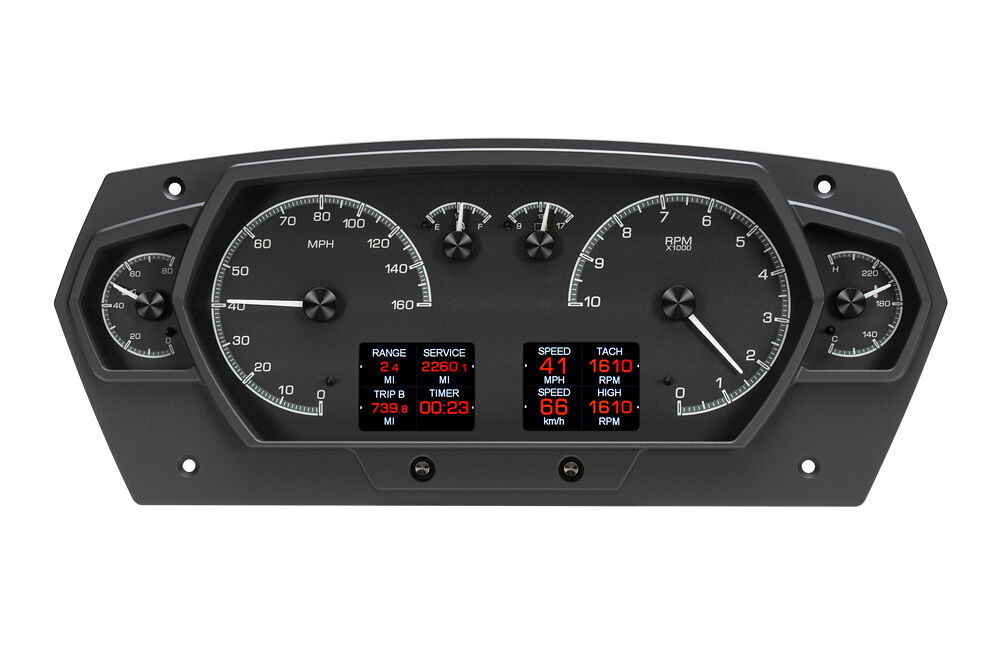

Unlike anything we've offered before, the HDX-2200 will set your project apart from the masses! Requiring 15.10” x 6.25” of flat dash space, this six-gauge system features two large TFT message centers for maximum driver awareness. Ensure you have 2” of clearance behind the 14.60” x 5.83” cutout. Billet aluminum bezel is powder coated in matte black, and the capacitive-touch programming switches are set just below the TFTs.

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series!

GAUGES

SPEEDOMETER: ·
  • 0 -160 MPH (or metric version 0- 255 kmh)

TACHOMETER: ·
  • 0- 8,000 RPM

OIL PRESSURE:·
  • 0- 80 psi

WATER TEMP: ·
  • 100- 260ºF (or metric version 40- 120ºC)

FUEL LEVEL: ·
  • E, 1/4, 1/2, 3/4, F

VOLTMETER: ·
  • 9- 17 VDC

MESSAGE CENTERS

STANDARD DISPLAYS
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
  • Clock (12 hour)
  • ·Estimated Range/ Miles to Empty



PERFORMANCE METERS
  • ·0- 60 MPH Timer (0- 100 kmh)
  • 1/4 and 1/8 mile time
  • 1/4 and 1/8 mile end speed (trap speed)
  • High speed recall
  • High RPM recall



BUILT-IN INDICATORS

• TURN SIGNALS (L/R)
• HIGH BEAM
• CHECK ENGINE
• PARKING BRAKE
• CRUISE CONTROL
• GEAR POSITION*
• 4 X 4 INDICATOR
• WAIT TO START

LIGHTING TECHNOLOGY

COLOURS Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.
BRIGHTNESS Both daytime and nighttime brightness can be easily controlled through the RTX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.
THEMES With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.
TECHNOLOGY Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the RTX Series lets you make that choice.

INCLUDED SENSORS & HARDWARE

COMPONENT SPECIFICATIONS
WATER TEMP 1/8" NPT, ground isolated sensor with a 10 ft harness.
OIL PRESSURE 1/8" NPT solid state sensor with a 10 ft harness.
CABLE DRIVEN SPEED SENSOR/GENERATOR Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part #130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)
BUSHINGS Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
CONTROL BOX 5.5" x 3.5" x 1"

CALIBRATION

PUSH BUTTON

Dakota Digital instruments are programmed by pushbutton. Use the included buttons to calibrate your speedometer, set cylinder count, and fuel level. Access all secondary data via the Digital Message Centers.



CALIBRATION

All calibration settings are handled through onboard capacitive touch switches or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle.

Universal
SKU DKD-XDX-2200-X
Brand Dakota Digital
Shipping Weight 3.1751kg
Shipping Width 0.254m
Shipping Height 0.508m
Shipping Length 0.457m
Shipping Cubic 2322.576250000m3
