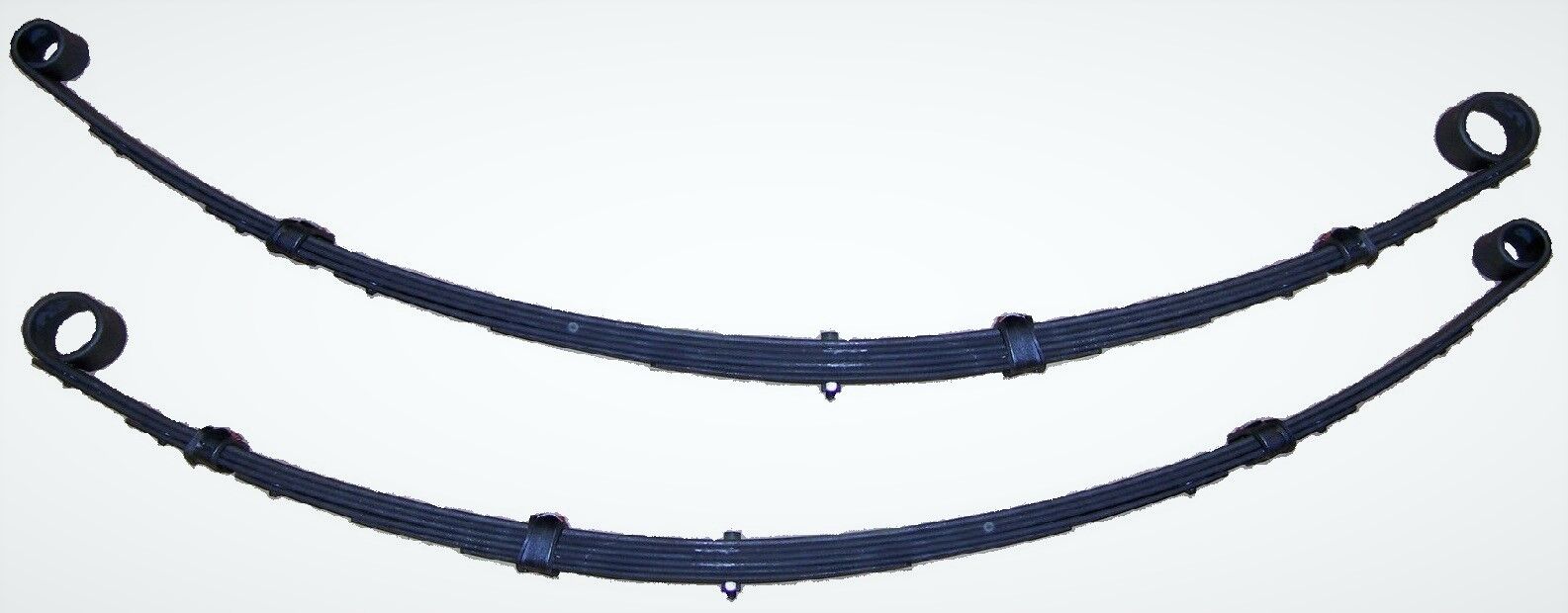

Lovells leaf springs are designed as a superior replacement part for mass-produced O.E. (Original Equipment) leaf springs. Practically all leaf springs used on cars, 4x4’s and trucks are of the semi-elliptic type. The semi-elliptic spring has the function of not only a spring, but it can also dampen vertical deflection, support the vehicle, position the axle, and cushion both driving torque and brake reaction. Lovells leaf springs are again manufactured using premium quality OneSteel micro alloy steel. Leaf springs are cambered on specially designed machines before being assembled, rate tested and inspected. All leaf springs are enamel dipped in Lovells Navy Blue, ready for dispatch.



Ride Height Options Vehicle ride heights (Eye Brow Heights) are measured vertically from the centre of the wheel hub to the edge of the guard. Vehicle ride heights are approximate only and can vary depending on:

  • Age of vehicle
  • Optional extras (i.e. FE2 police pack, Sports Pack etc.)
  • Load-Bearing Accessories

IMPORTANT: If the vehicle is fitted with FE2 height springs from factory, this is equivalent to Lovells Sport Low height. Note that Super low coil springs are designed for cosmetic enhancement only. Ensure sufficient bump stop clearance is maintained. Check Applicable State Regulations for further detail.

Front

Designation Approx Rid Height Change Comment
Super Low Lower
45-65mm		 Limited Suspension travel, designed for cosmetic enhancement.
Sport Low Lower
25-40mm		 Designed for enhanced vehicle handling and control.
Heavy Duty - Standard Standard Designed to restore original ride height, balance, and load capacity.
Cargo Raise
20-25mm		 Designed to dramatically increase load carrying capacity, heavy towing, and vehicles fitted with LPG or larger fuel tanks.



Rear

Designation Approx Ride Height Change Comment
Super Low

Lower
45-65mm

 Limited Suspension travel, designed for cosmetic enhancement.
Sport Low Lower
45-40mm		 Designed for enhanced vehicle handling and control.
Heavy Duty - Standard Standard Designed to restore original ride height, balance and load capacity.
Raised Raise
20mm		 Designed for increased ground clearance, country driving and where load-bearing accessories are fitted (ie bull bar).
  • Ford Falcon XA-XF Wagon All cyl. 3/72-3/93 - Standard
SKU FLS-11S
Brand Lovells
Shipping Weight 50.0000kg
Shipping Width 0.150m
Shipping Height 0.250m
Shipping Length 1.450m
Shipping Cubic 0.054375000m3
