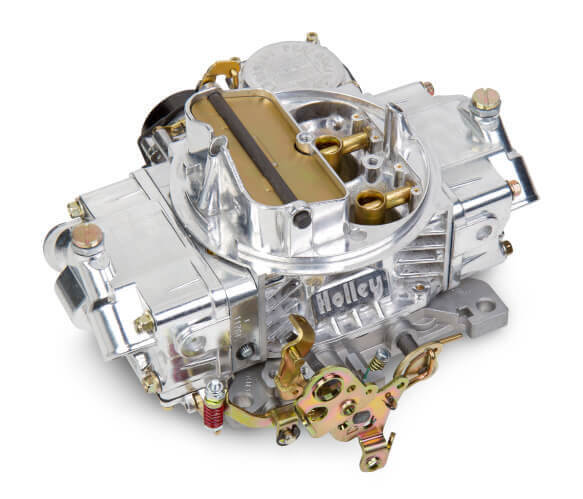

Holley Street Avenger Carburetor Model 4150 570 cfm Square Bore Electric Choke 4-Barrel Vacuum Aluminium
SKU code: 0-80570
$1,254.00
Street Avenger carburetors are known to bolt on right out of the box and have great features such as a quick change vacuum secondary for easy fine tuning; optimized street calibrations; four vacuum ports for all necessary vacuum accessories; factory preset electric choke for easy start ups; built-in fuel filters; and an included fuel line kit so there are no unnecessary trips back to the parts store. The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service.
Features:
- Vibratory polished for good looks
- Optimized street calibration that works-out-of-the-box
- Factory preset electric choke for easy startups
- Vacuum secondaries allow use on a wide variety of vehicles. Quick Change vacuum housing cap allows you to tune for performance or fuel economy (springs included)
- Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
- Fuel line kit included so there are no unnecessary trips back to the parts store
- Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product!
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
| Barrels | 4 |
|---|---|
| Booster | Straight |
| Brand | Holley |
| Carburetor Use | Street |
| CFM | 570 |
| Choke | Electric |
| Condition | New |
| Emission Code | 3 |
| Finish | Shiny |
| Fuel | Gasoline |
| Fuel Inlet | Dual |
| Marine Use | No |
| Material | Aluminum |
| Model | 4150 |
| Primary Main Jet | 64 |
| Primary Power Valve | 6.5 |
| Primary Pump Nozzle Size | 31 |
| Product Type | Carburetor |
| Secondaries | Vacuum |
| Secondary Main Jet | 68 |
| Supercharged Application | No |
| Throttle Bore | 1.562 inch |
| Vacuum Ports | 1 timed (spark) port, 2 full, and 1 PCV port |
| Warranty | Limited Lifetime Warranty |
| UPC | 090127539095 |
| Part Number | 0-80570 |
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
| SKU | 0-80570 |
| Barcode # | 090127539095 |
| Brand | Holley |
| Shipping Weight | 4.5000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.200m |
| Shipping Length | 0.300m |
| Shipping Cubic | 17024.000000000m3 |
