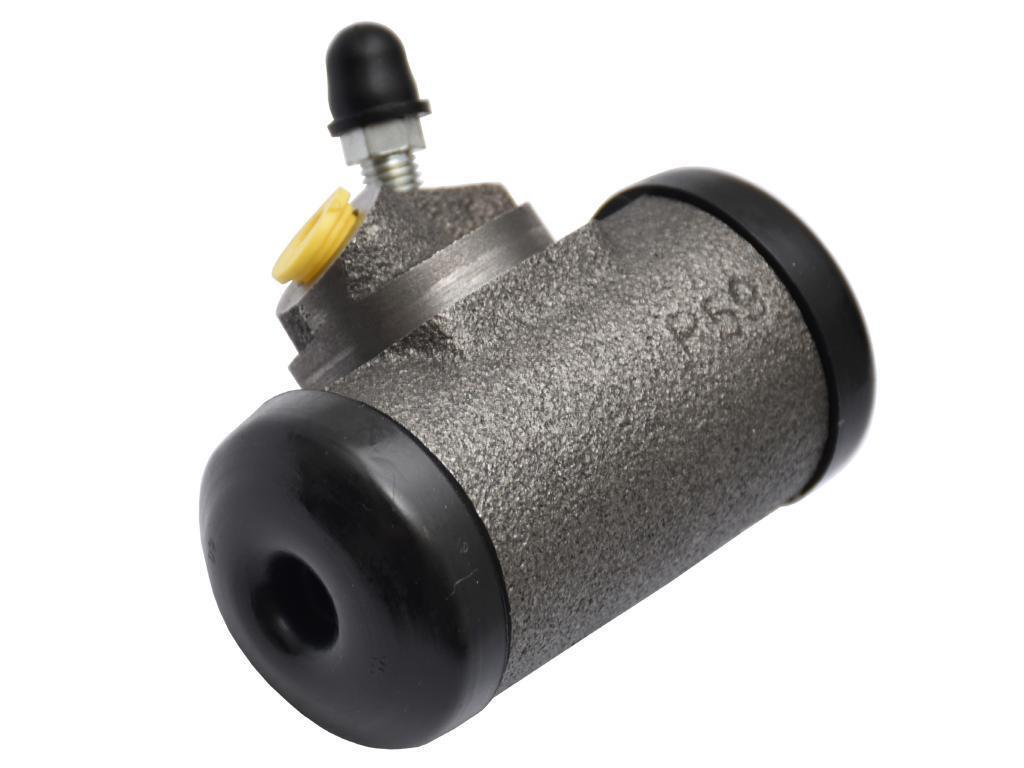

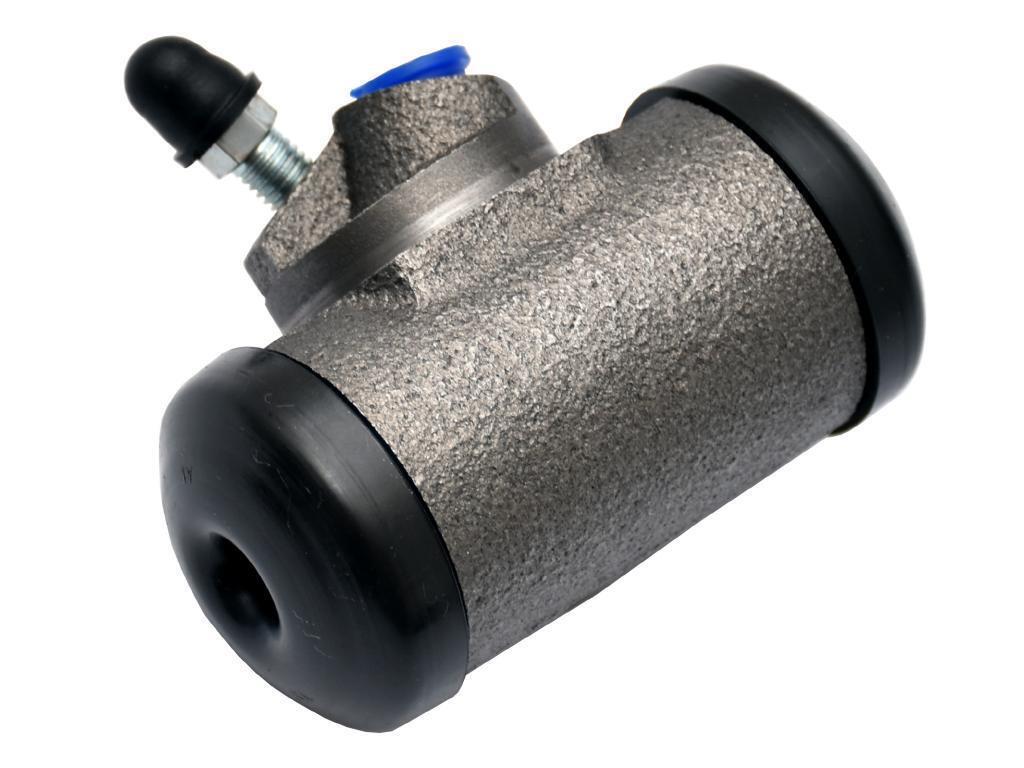

Brake wheel cylinder which fits the Left or Right Hand front of the vehicle.

Please note: This brake cylinder bolts to the Left hand front brake backing plate, fit the brake hose, washer to the cylinder and screw the metal pipe to the hose once the cylinder has been bolted to the backing plate, fit the brake to lock (U shaped clip) to the end of the hose to the metal bracket on the sub frame and bleed the brakes once the brakes are completed.

Note: This cylinder fits all HD, HR models and EJ, EH Utes and Panel Vans fitted with 2 ¼” (Approx 57 mm) brakes.

Hint: Check that the hose misses the wheel on full lock, adjust hose clearance if necessary.

Suites Holden EJ, EH, HD and HR

  • Standard, Special, Premier
  • Sedan Wagon, Utility (Ute), Panel Van
  • Fitted with 6 cylinder Grey motor, Red motor, 149, 161, 179, 186, Engine.
  • Holden HD HR All EJ EH Ute Van
SKU RS-74246XX
Shipping Weight 0.7000kg
Shipping Width 0.050m
Shipping Height 0.100m
Shipping Length 0.150m
