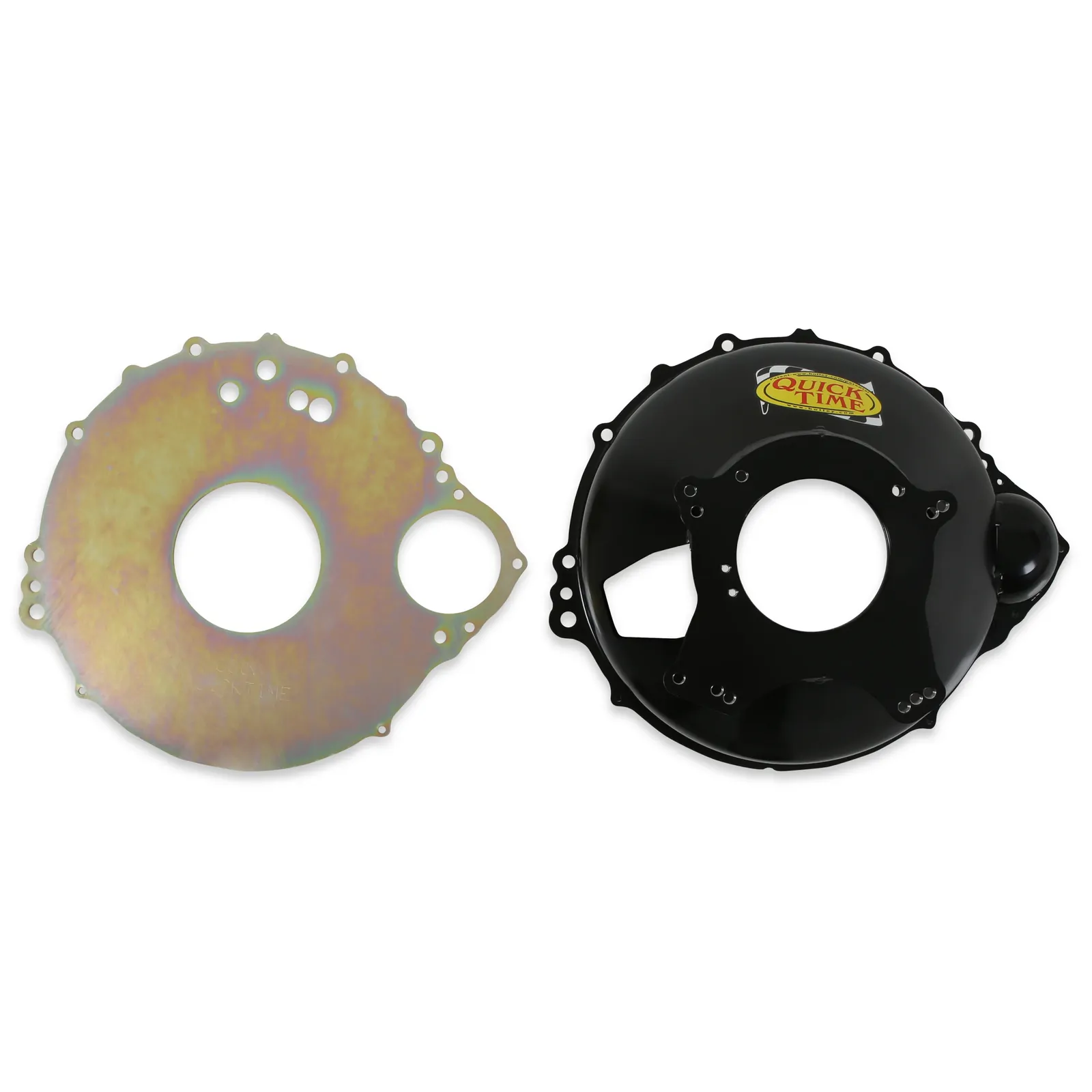

The Quick Time RM-6056 bellhousing connects Ford FE big block engines to Ford TKO500/600, T5 Mustang, or TR3550 transmissions. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

Features:

  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process

Brand Quick Time
Category Transmission
Certification None
Clutch Diameter 12"
Clutch Operation Hydraulic
Engine Ford 352
  Ford 390
  Ford 427
  Ford 428
  Ford FE Block
Engine Make Ford
Engine Plate RM-6008
Finish Black Semi-gloss
Flywheel 184 Tooth
Height 7.150 inch
Material Steel
Part Type Transmission Bell Housing
Patented yes
SFI Approved No
Trans Bore 4.85 / 4.91 / 5.12
Trans. Bore Diameter 4.85 / 4.91 / 5.12 inch
Transmission T5 Ford 1983-1993
  TKO 500/600 Ford
  TKX Ford
  TR3550
Transmission Type Manual
Weight (lb) 22
UPC 084041029183
Part Number RM-6056



SKU RM-6056
Barcode # 084041029183
Brand Quicktime
Shipping Weight 11.0000kg
Shipping Width 0.500m
Shipping Height 0.250m
Shipping Length 0.500m
Shipping Cubic 0.062500000m3
