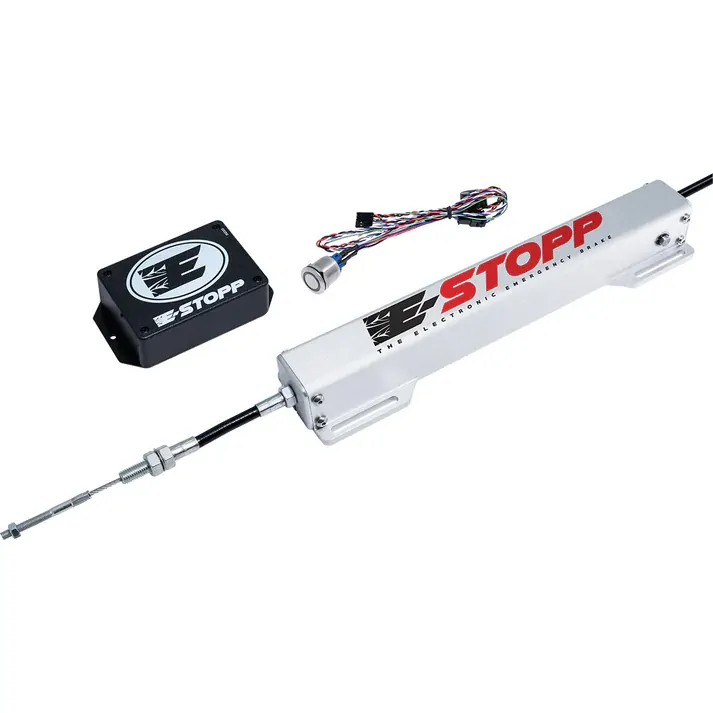

The E-Stopp Universal Electronic E-Brake Kit provides a complete electronic parking brake solution for vehicles using a cable-based parking brake system. The high-strength electronic actuator is enclosed in a brushed aluminum housing and rated IP67 for protection against dust, water and road debris. With 600 pounds of pulling force, it delivers consistent and balanced braking performance.

This kit includes the E-Stopp control module and a 22 mm stainless steel billet button with an integrated LED that visually indicates brake engagement and release. A secondary indicator wire supports integration with a factory parking brake light or digital dashboard display, while the optional safety lockout connector enhances system safety. Ideal for automotive, custom, and mobility applications, the E-Stopp Universal Electronic E-Brake Kit offers dependable electronic parking brake control in a compact, durable package.

Includes a stainless steel billet button with an integrated red LED

• Actuator

  Total Length: 27 in (69 cm)

  • Includes fully extended 12 in (31 cm) cable

  Housing: Brushed aluminum

  Housing Dimensions:

  • Length: 15 in (38.1 cm)
  • Width: 3-1/4 in (9.6 cm) (including flanges)
  • Height: 2 in (5.1 cm)

  Environmental Rating: IP67 (dust and water resistant)

  Cable Thread Sizes:

  • 6 mm × 1.0 pitch
  • 10 mm × 1.5 pitch

  Pull Strength:

  • 600 lbf (2670 N) total
  • 300 lbf (1335 N) per brake caliper when used with an equalizer

• Control Module

  Housing: Flanged black plastic

  Dimensions:

  • Length: 5-1/4 in (13.4 cm) (including flanges)
  • Width: 3 in (7.7 cm)
  • Height: 1-3/8 in (3.5 cm)

  Power Requirement:

  • 12V/10A constant power
  • Draws 3-8A when operating, >1mA when idle

  Additional Features:

  • Optional safety lockout connector
  • Secondary wire for dashboard or digital dash parking brake indicator

• Switch

  • Type: 22 mm latching billet button with LED
  • Wire Harness Length: 18 in (46 cm)
