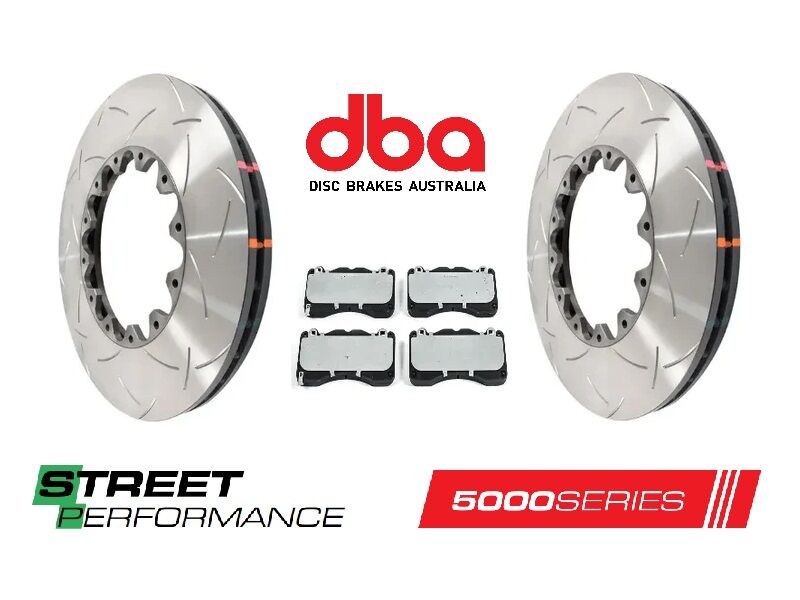

DBA Front Brake Kit 5000 Series T3 Slotted 2 Piece Rotors & Street Performance Pads Jeep Trackhawk 6.2L 400mm
DBA53919.1S & DB15039SP
SKU code: KIT-BRK-TH62-F
5000 SERIES T3 is the ultimate in direct replacement 2 piece performance brake rotors. Featuring all the benefits of the 5000 Series along with DBAs patented world renowned T3 bi directional slot design.
Built on the foundations of DBAs T2 slot, the T3 slot design features additional precise CNC machined tri symmetrical slots, resulting in an even quieter, more responsive and smoother braking experience. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.
DBA recommends a T3 slot for high performance applications. These rotors suit the factory hats, and come complete with replacement lock nuts.
STREET PERFORMANCE brake pads DB15039SP (replaces DB15039) have been designed for drivers seeking improved braking characteristics over traditional OE brake pads. STREET PERFORMANCE is the next step up for all vehicles, developed to provide an effective friction response to pedal application and offer low wear and dust minimisation.
We recommend STREET PERFORMANCE brake pads for daily driver and performance vehicles, 4WDs and SUVs. They are also compatible with Light Commercial Vehicles.
We recommend use with STREET SERIES T2 or 4000 SERIES T3 slotted rotors for optimum braking power. Pad pics for reference only.
Brake Rotor Technical Specs
| Product SubVariant | T3 |
|---|---|
| Axle | Front |
| Vane Design | KP Vents |
| Outer diameter[mm] | 400 |
| Height [mm] | 36 |
| Brake Disc Thickness [mm] | 36 |
| Minimum Thickness [mm] | 34 |
| Centering Diameter [mm] | 185 |
| Number of Holes | 12 |
| Pitch Circle Ø | 217.00 |
| New Lock Nuts Included | Yes - 12 |
| Surface Design | Slotted |
Brake Pad Technical Specs
| Axle | Front |
|---|---|
| Length 1 [mm] | 189 |
| Width 1 [mm] | 94.7 |
| Thickness 1 [mm] | 16.1 |
| Friction Material | Semi-Met Carbon Fibre |
| Copper Content | Copper-Free |
| Application | Street Performance |
| Chamfer | Yes |
| Slots | Yes |
| Shim | Yes |
| TSP | Scorched |
| Bedding In Stripe | No |
1970, 1971, 1972, gmc, Jimmy
| SKU | KIT-BRK-TH62-F |
| Brand | DBA |
| Shipping Weight | 45.0000kg |
| Shipping Width | 0.450m |
| Shipping Height | 0.250m |
| Shipping Length | 0.450m |
| Shipping Cubic | 0.050625000m3 |
