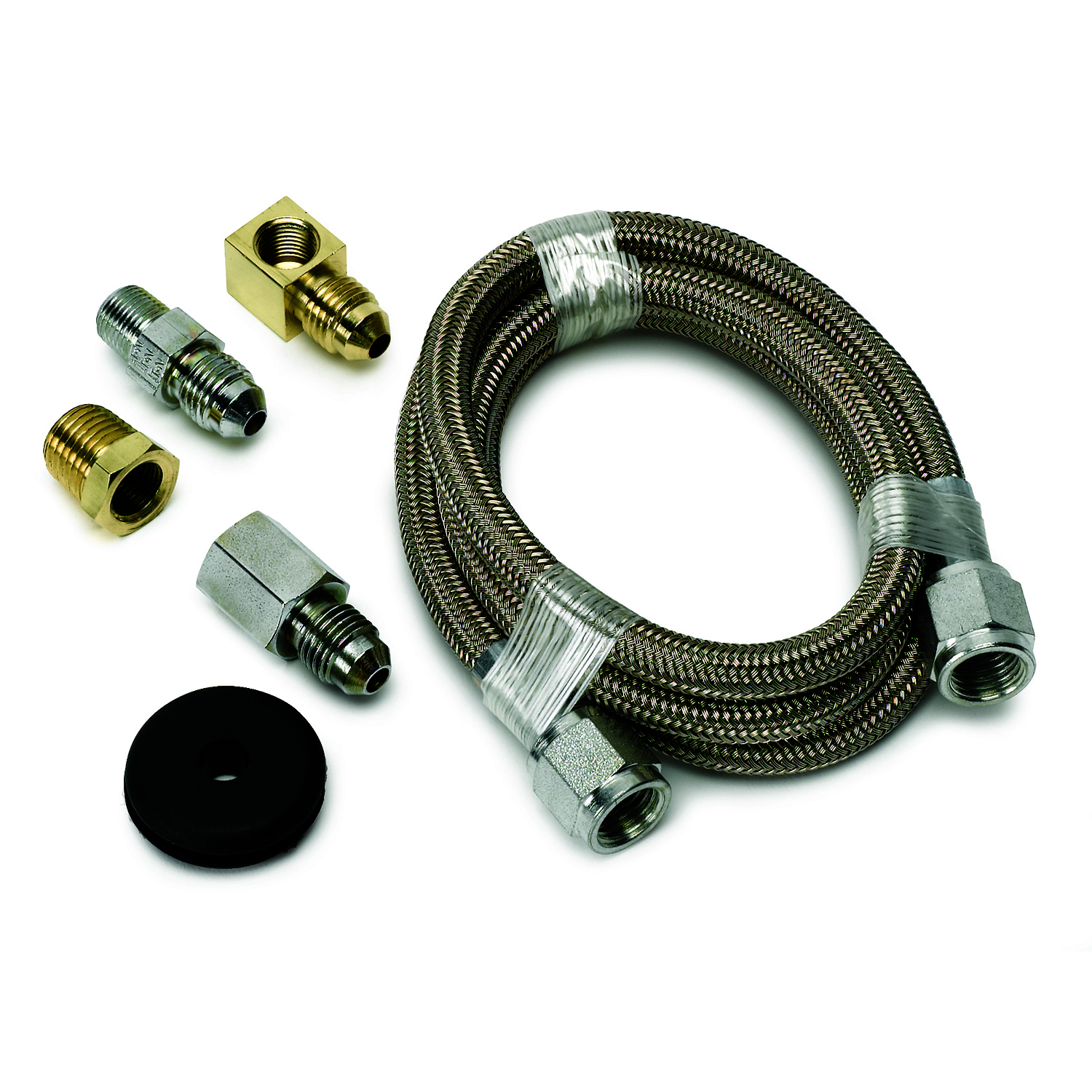

Includes 3, 4 or 6ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

  • 3, 4 or 6ft hose length
  • PTFE lined hose, resistant to most fluids
  • Type 304 Stainless braid
  • Maximum Operating Pressure - 3000 PSI
  • Burst Pressure - 12,000 PSI
  • `-65 °F to 450 °F Operating Temperature Range
  • Includes 1/8"NPT male to -4AN female straight, 1/8" FPT Female to -4AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -4AN to 1/8" NPT female 90 degree fittings
SKU ATM322X
Brand Autometer
Shipping Weight 0.2132kg
Shipping Width 0.013m
Shipping Height 0.147m
Shipping Length 0.030m
