Bonnet (hood) moulding and clip Kit.

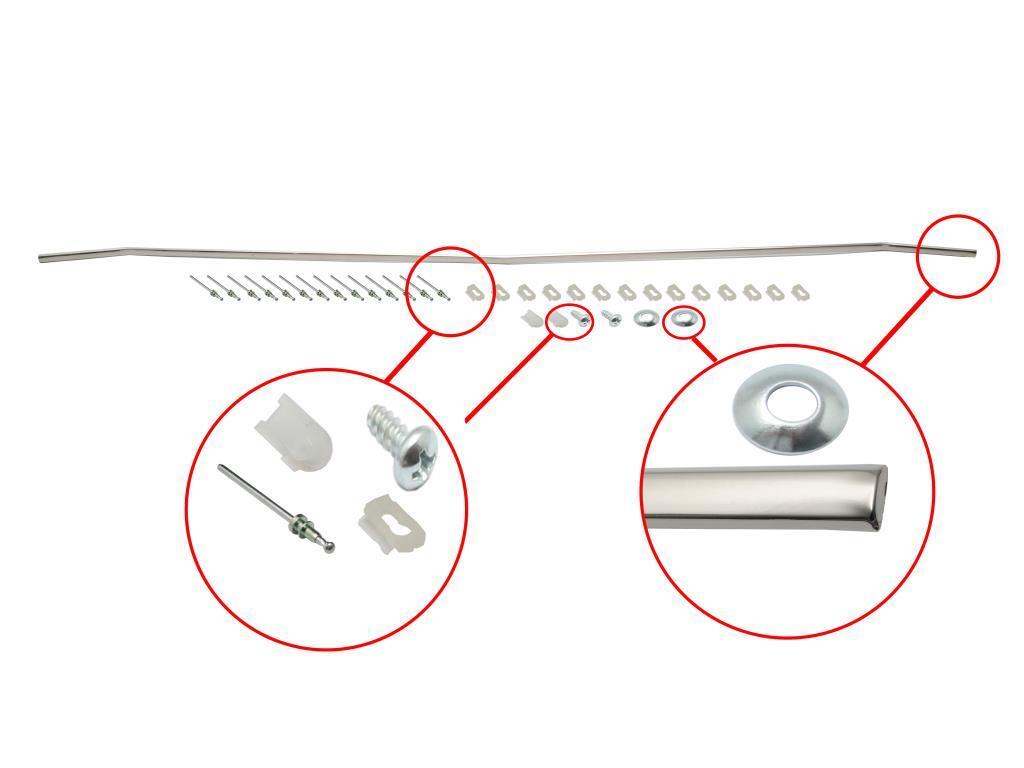

This kit has the stainless steel bonnet moulding, 14 pop rivets, 14

moulding clips, 2 end clips, cup washers with screws to hold the moulding to the bonnet.

Hint: Make sure that the holes are clear before using a pop rivet gun to install the rivets to the bonnet, then push the clips onto the rivets using a sideways motion. Install the end clips by sliding the clip into the moulding checking carefully against the bonnet to get the end clips lined up with the bonnet holes, with the moulding hooked under the edge of the clips push/roll the moulding until the moulding sits against bonnet edge, fit the cup washers so the curve is facing away from the bonnet and then tighten the screw until the screw head sits against the washer.

Note: if the washers are placed with the cup into the screw head, damage to the moulding may result due to denting.

This product suits Holden HK, HT and HG

• Belmont, Kingswood, Premier, Monaro, Brougham
• Sedan, Wagon, Utility (Ute), Panel Van
• Fitted with 6 cylinder Red motor, 161, 186, 8 cylinder V8, Chevrolet (Chev), 307, 327, 350, 253 (4.2 Litre, 308 (5.0 Litre) Engine
