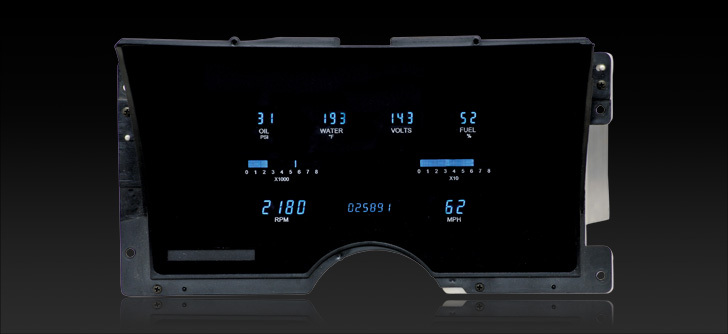

1992-94 Chevy Pickup Instruments Digital Instrument System:VFD3-92C-PU-U-Z

Full 6 Gauge Instrument System fits into OEM instrument cluster for 1992- 94 Chevy & GMC Fullsize Pickup, Suburban, Tahoe and Yukon dash.

Fits directly into existing instrument cluster of trucks which HAVE a factory tachometer.

*System eliminates the gear indicator found in the OEM instrument cluster of models which had an automatic transmission. To add the a shifter detent readout within the VFD3 display, add GSS-3000 Gear Shift Sensor.

GAUGES

SPEEDOMETER: ·0 -255 MPH (or metric version 0- 255 km/h)

TACHOMETER: 0- 17,500 RPM

OIL PRESSURE: 0- 99 psi

WATER TEMP: 0- 300°F (optional metric version 0- 150°C)

FUEL LEVEL: 0- 99%

VOLTMETER: 8- 17 VDC

Standard Colors: Blue or Teal

MESSAGE CENTERS

STANDARD DISPLAYS
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
PERFORMANCE METERS
  • 0- 60 MPH Timer (0- 100 kmh)
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall

GAUGES

  • Speedometer (0- 255 MPH/kmh) opposite scale of main speedometer.



BUILT-IN INDICATORS

• TURN SIGNALS (L/R)
• HIGH BEAM
• CHECK ENGINE
• PARKING BRAKE
• CRUISE CONTROL
• GEAR POSITION*
• 4 X 4 INDICATOR
• WAIT TO START

INCLUDED SENSORS & HARDWARE

COMPONENT SPECIFICATIONS
WATER TEMP 1/8" NPT, ground isolated sensor with a 10 ft harness.
OIL PRESSURE 1/8" NPT solid state sensor with a 10 ft harness.
SPEED SENSOR Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part #130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)
BUSHINGS Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
CONTROL BOX 5.5" x 3.5" x 1"

CALIBRATION

PUSH BUTTON

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

  • 1992-94 Chevy Pickup
SKU DKD-VFD3-92C-PU-U-Z
Model # VFD3-92C-PU-U-Z
Barcode # #N/A
Brand Dakota Digital
Shipping Weight 2.7273kg
Shipping Width 0.356m
Shipping Height 0.152m
Shipping Length 0.610m
Shipping Cubic 0.033008320m3
