1978-88 Chevy Monte Carlo/1978-87 Chevy El Camino/Malibu/Caballero Digital Instrument System:VFD3-81C-MC-Z

Now compatible with more model years!!

Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

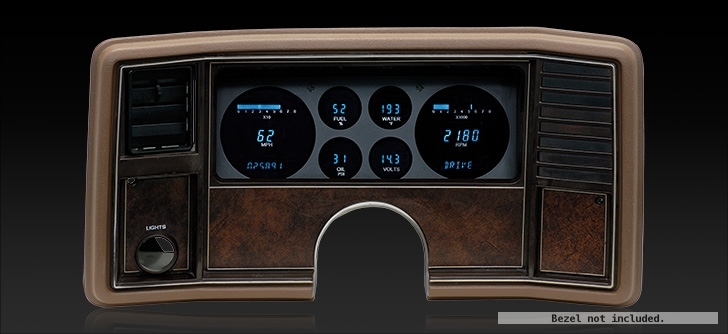

Full 6 Gauge Instrument System fits into OEM bezel NOW FITS 1978- 88 Chevy Monte Carlo/ 1978 -87 Chevy El Camino and Malibu with the round Speedometer and gauges. Also fits 1978- 87 GMC Caballero.

*Bezel not included, shown for visual/presentation purposes.

System uses OEM or reproduction style bezel.

**Will not fit rectangular sweep-style speedometer cluster.**

Please call us at 1-800-593-4160 or Contact a Dealer to purchase this kit.

GAUGES

SPEEDOMETER: ·0 -255 MPH (or metric version 0- 255 km/h)

TACHOMETER: 0- 17,500 RPM

OIL PRESSURE: 0- 99 psi

WATER TEMP: 0- 300°F (optional metric version 0- 150°C)

FUEL LEVEL: 0- 99%

VOLTMETER: 8- 17 VDC

Standard Colors: Blue or Teal

MESSAGE CENTERS

STANDARD DISPLAYS
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
PERFORMANCE METERS
  • 0- 60 MPH Timer (0- 100 kmh)
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall

GAUGES

  • Speedometer (0- 255 MPH/kmh) opposite scale of main speedometer.



BUILT-IN INDICATORS

• TURN SIGNALS (L/R)
• HIGH BEAM
• CHECK ENGINE
• PARKING BRAKE
• CRUISE CONTROL
• GEAR POSITION*
• 4 X 4 INDICATOR
• WAIT TO START

INCLUDED SENSORS & HARDWARE

COMPONENT SPECIFICATIONS
WATER TEMP 1/8" NPT, ground isolated sensor with a 10 ft harness.
OIL PRESSURE 1/8" NPT solid state sensor with a 10 ft harness.
SPEED SENSOR Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part #130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)
BUSHINGS Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
CONTROL BOX 5.5" x 3.5" x 1"

CALIBRATION

PUSH BUTTON

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

  • 1978-88 Chevy Monte Carlo
  • 1978-87 Chevy El Camino/Malibu/Caballer
SKU DKD-VFD3-81C-MC-Z
Model # VFD3-81C-MC-Z
Barcode # #N/A
Brand Dakota Digital
Shipping Weight 2.7273kg
Shipping Width 0.356m
Shipping Height 0.152m
Shipping Length 0.610m
Shipping Cubic 0.033008320m3
