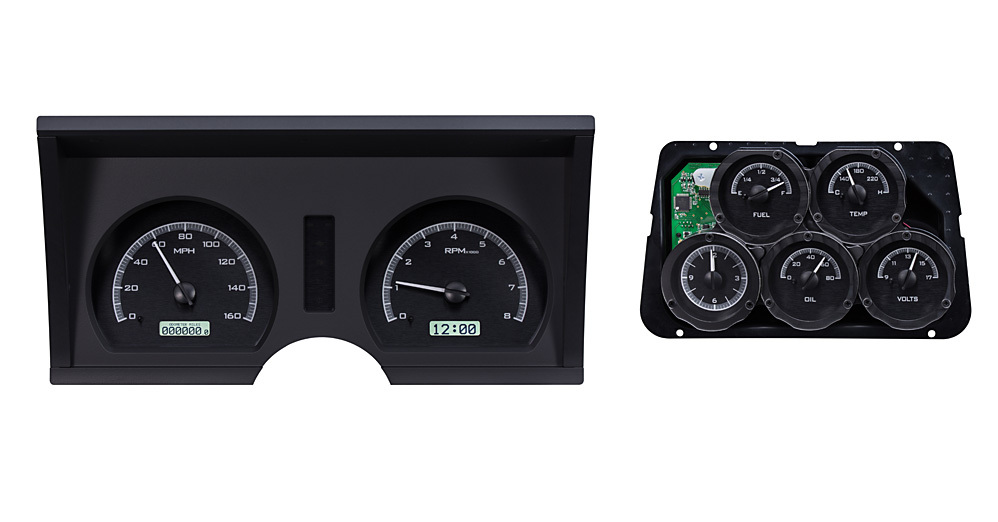

1978-82 Chevy Corvette VHX Instruments w/Analog Clock - Black Alloy Face, White Display, KPH
SKU code: DKD-MHX-78C-VTA-K-W
1978-82 Chevy Corvette VHX Instruments w/Analog Clock:VHX-78C-VTA-X-X

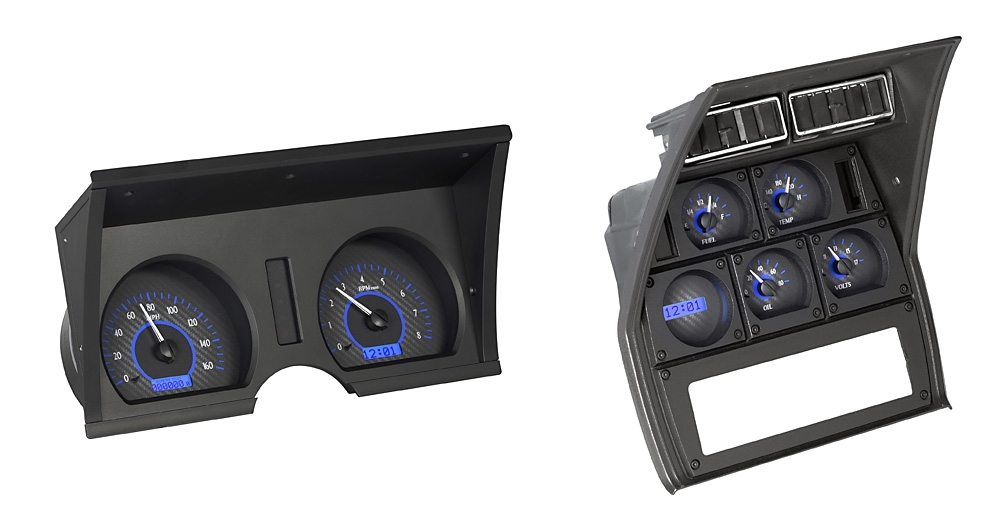

Forget about Bloomington Gold certification; Corvette is a driver's car! Whether you yanked out the anemic L82 in favor of a poked and stroked big block or have a turbocharged LS, the supplied sending units have you covered. Your choice of a third LCD message center (VET) or analog clock (VTA) fills the fifth gauge opening in the center cluster, while a fullsize speedometer and tach are front and center for the driver. Speedometer and Tachometer gauge housing has been completely replicated in billet aluminum, powdercoated in a flat black to keep the original theme.Oil Pressure, Water Temperature, Voltmeter, Fuel Level and an additional LCD Message Center (if selected) attach directly to the back side of the stock center console bezel.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Designed to fit Factory Console Bezel (not included, bezel shown for reference only).
GAUGESSPEEDOMETER: ·
TACHOMETER: ·
OIL PRESSURE:·
WATER TEMP: ·
FUEL LEVEL: ·
VOLTMETER: ·
LIGHTING:· Back-lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
|
MESSAGE CENTERSSTANDARD DISPLAYS
PERFORMANCE METERS
GAUGES
LIGHTING
|
BUILT-IN INDICATORS
INCLUDED SENSORS & HARDWARE
| COMPONENT | SPECIFICATIONS |
|---|---|
| WATER TEMP | 1/8" NPT, ground isolated sensor with a 10 ft harness. |
| OIL PRESSURE | 1/8" NPT solid state sensor with a 10 ft harness. |
| SPEED SENSOR | Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part #130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.) |
| BUSHINGS | Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads. |
| CONTROL BOX | 5.5" x 3.5" x 1" |
CALIBRATION
Dakota Digital instruments are programmed by pushbutton. Use the included buttons to calibrate your speedometer, set cylinder count, and fuel level. Access all secondary data via the Digital Message Centers.
- 1978-82 Chevy Corvette
| SKU | DKD-VHX-78C-VTA-X-X |
| Barcode # | #N/A |
| Brand | Dakota Digital |
| Shipping Weight | 3.6364kg |
| Shipping Width | 0.356m |
| Shipping Height | 0.203m |
| Shipping Length | 0.610m |
| Shipping Cubic | 0.044083480m3 |
