1970-81 Camaro HDX Instruments - Silver Alloy Face, KPH
SKU code: DKD-MDX-70C-CAM-S
1970-81 Camaro HDX Instruments:HDX-70C-CAM

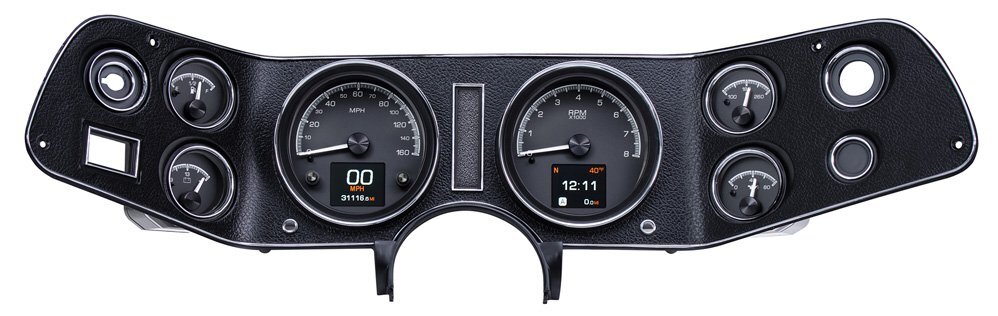

The European-inspired design of 1970- 81 Camaros gave us a cockpit full of driver-oriented instruments; high-zoot in 1970 but long in the tooth today. This HDX package is a bolt-in operation and brings fully configurable, twin TFT message centers in addition to six analog needles with stepper motor movements. Black or silver face styling and user-settable illumination assures a perfect match to your theme. HDX-70C-CAM utilizes a stock or reproduction bezel, as one is not supplied.
Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series!
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
GAUGESSPEEDOMETER: ·
TACHOMETER: ·
OIL PRESSURE:·
WATER TEMP: ·
FUEL LEVEL: ·
VOLTMETER: ·
|
MESSAGE CENTERSSTANDARD DISPLAYS
PERFORMANCE METERS
|
BUILT-IN INDICATORS
LIGHTING TECHNOLOGY
| COLOURS | Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color. |
| BRIGHTNESS | Both daytime and nighttime brightness can be easily controlled through the RTX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality. |
| THEMES | With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself. |
| TECHNOLOGY | Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the RTX Series lets you make that choice. |
INCLUDED SENSORS & HARDWARE
| COMPONENT | SPECIFICATIONS |
|---|---|
| WATER TEMP | 1/8" NPT, ground isolated sensor with a 10 ft harness. |
| OIL PRESSURE | 1/8" NPT solid state sensor with a 10 ft harness. |
| CABLE DRIVEN SPEED SENSOR/GENERATOR | Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part #130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.) |
| BUSHINGS | Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads. |
| CONTROL BOX | 5.5" x 3.5" x 1" |
CALIBRATION
PUSH BUTTON
Dakota Digital instruments are programmed by pushbutton. Use the included buttons to calibrate your speedometer, set cylinder count, and fuel level. Access all secondary data via the Digital Message Centers.
CALIBRATION
All calibration settings are handled through onboard capacitive touch switches or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle.
- 1970-81 Chevrolet Camaro
| SKU | DKD-HDX-70C-CAM |
| Model # | HDX-70C-CAM |
| Barcode # | #N/A |
| Brand | Dakota Digital |
| Shipping Weight | 3.6364kg |
| Shipping Width | 0.356m |
| Shipping Height | 0.152m |
| Shipping Length | 0.610m |
| Shipping Cubic | 0.033008320m3 |
