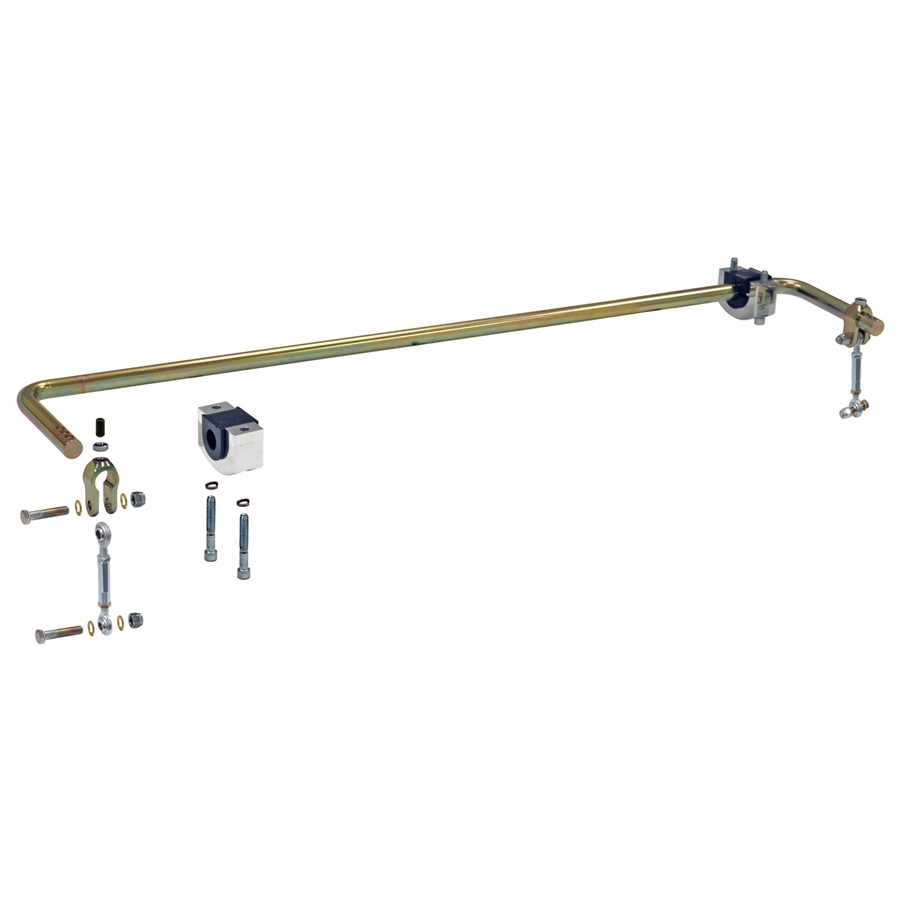

The sliding-link anti-roll bar system features a 5/8”-diameter, solid bar mounted to the same frame adapter brackets as the g-Bar suspension cradle for a complete bolt-on installation. Billet-aluminum bushing housings securely hold the bar and feature a grease-zerk fitting, and black-polyurethane bushings with internal grease passages. Our unique sliding-link mechanism, utilizes three distinct indents at each end of the anti-roll-bar lever to create six incremental adjustments. The CNC-machined clevis is locked into each detent by a set screw and jam nut, preventing unintended sliding or twisting of the assembly. Links consist of 3/8” rod-ends, allowing the anti-roll bar to be precisely set to a neutral, non-preload condition, by adjusting the assembly length. The sliding-link anti-roll bar system can be used on the entire family of g-Bar suspensions.

Note: Required g-Bar frame-adapter bracket with integrated anti-roll bar mounting flange is packaged with g-Bar system and must be selected at time of g-Bar purchase.
