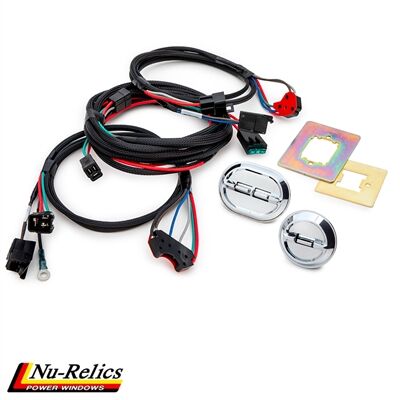

For the Ford Guy's Switches with completed wire harness for door placement. The bezel is an aluminum housing which has been milled, buffed, polished and chromed. The single bezel is a circle and the master switch is an elongated circle. The bezels resemble earlier Ford switches. These are reverse polarity switches. These are not direct replacements for the original switches.

Switch dimensions:

Bezel:
Double: length = 3"; height = 2-1/4"
Single = 2-1/4" diameter
Hole Size:
Double: length = 2-3/8"; height = 1-7/16";
Single: length = 1-3/4"; height = 1-1/2"

• Amperage

  Switch  Current Loading Max Current

  Single Chrome, 10 AMPS  80 AMPS

  Nostalgic, FTFG

  Double Chrome, 10 AMPS  80 AMPS

  Nostalgic, FTFG

  Quad Chrome, 10 AMPS  80 AMPS

  Nostalgic, FTFG



  • Put Dielectric grease or tuner-lube inside the switch plug - then push the pins through the switch plug. The grease will keep moisture out and helps installing the pins into the plug
  • One pin on the back is longer then the others. This is to help line up the other pins. If it hits the inner door skin, the regulator or any metal, it can be cut off with wire cutters. The pin is copper - DO NOT use a cut-off wheel.
  • The red backing plate on the switch plug is not designed to be removed. If you remove the the red backing, there will be nothing to hold it back in place. With a small pick the terminals can be removed - only if necessary.
  • DO NOT press in on the switch levers when installing. Apply pressure around the bezel only.
