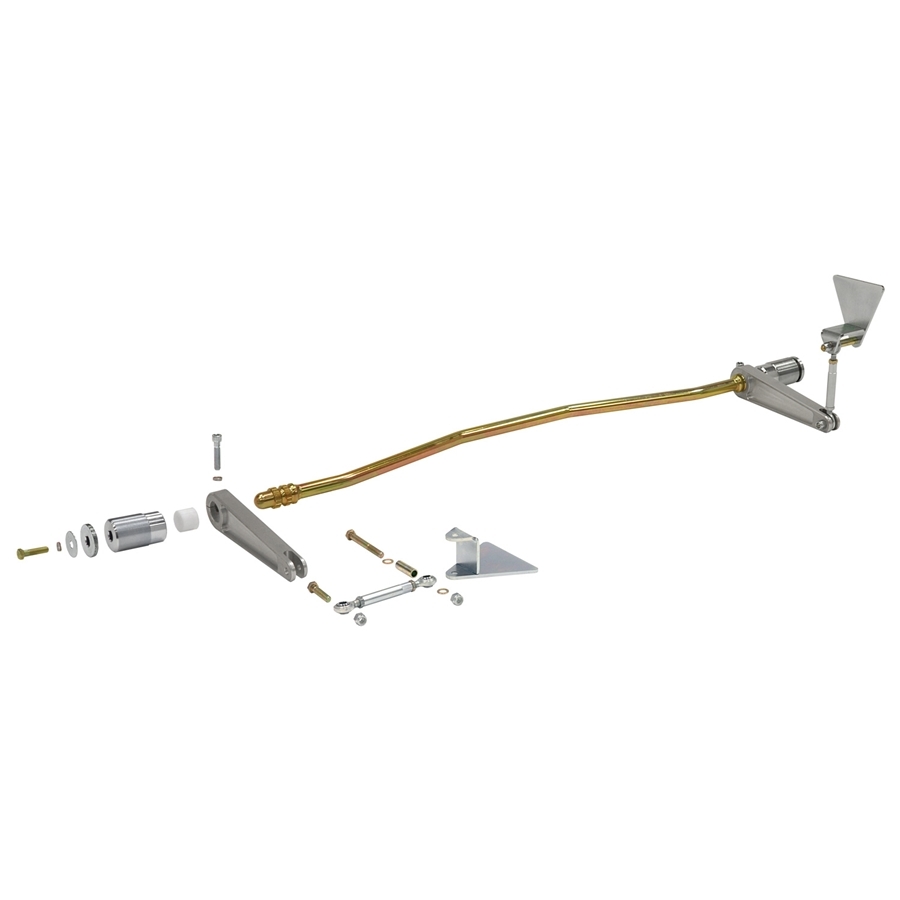

Our splined-end anti-roll bar system features a 3/4”-diameter, bent-tube design, that mounts below the rearendhousing. The bar adequately clears FAB9™ and OEM center sections, without decreasing ground clearance. An adjustable, billet-pivot-socket mechanism threads into the g-Bar lower axle-bracket sleeve, and allows the bar to rotate smoothly in a play-free joint. Billet-aluminum arms extend forward, and are connected to the chassis through links consisting of adjustable-length, 3/8” rod-end assemblies. This allows the anti-roll bar to be precisely set in a neutral, non-preloaded state. Double-shear, steel mounts are welded along the stronger, outside corner and acrossthe bottom of the stock frame rail. The combination of Chassisworks’ exclusive pivot mechanism, splined bar ends, spherical-bearing links, and rigid chassis attachment eliminates delayed resistance in the anti-roll bar system, common with rubber-, or urethane-mounted systems. The splined-end anti-roll bar system can be used on the entire family of g-Bar suspensions.

Note: Required g-Bar axle bracket with integrated anti-roll-bar socket boss is packaged with g-Bar system and must be selected at time of g-Bar purchase.
