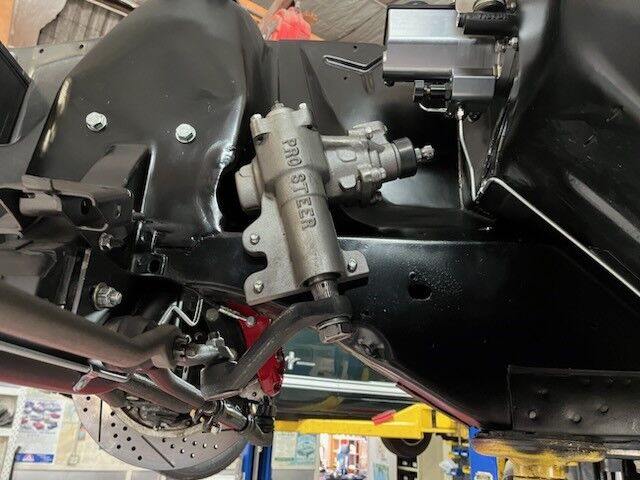

Power steering conversion box for 1964-1970 Ford Mustangs that currently have a XR - XY Falcon steering box, with 1-1/8" sector shaft. Modern integral power steering conversion box with a quick 14:1 quick ratio and firm modern feel. Steering column modifications required for installation. All Pro Steer power steering boxes are assembled and tested in Australia from local & globally sourced components.



NOTE: 1967 Mustangs Used 1" & 1-1/8" pitman shafts measure first!

NOTE: This box fits XR - XY Falcons with 1-1/8" Sector Shaft.

NOTE: XR - XT will need the column shaft cut and 2 parallel flats ground onto the end, and a DD steering coupling used

NOTE: XW - XY will need the colapsable column partially colapsed to make room for the taller box.

NOTE: RHD converted Mustangs may need the tower notched as per te pics, depending on the exact location that your box has been placed.



Input Shaft: 11/16"-36 Spline



Pitman Shaft: 1-1/8" Ford with 32 Splines and 4 Master Splines



Pressure Port: 16mm X 1.5 Flare (Located closest to engine)



Return Port: 16mm X 1.5 Flare (Located closest to input shaft)



Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal



Flow Rate: 2.0-2.5 GPM Flow Rate Recommended

  • 1971-74 Dodge Charger
SKU 200345
Shipping Weight 5.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.350m
