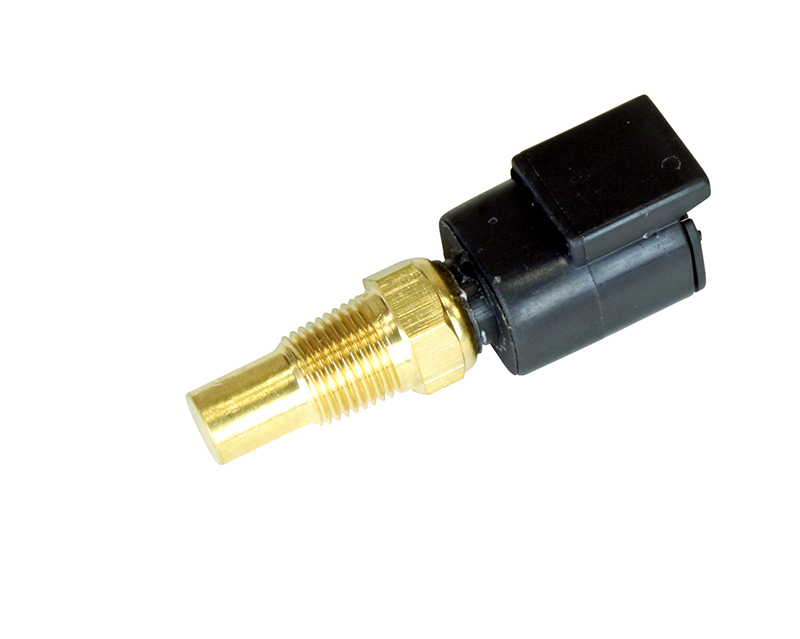

Temperature Sensor with 1/8" NPT Male Thread, High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins

AEM offers 1/8" NPT DTM-Style Connector(PN 30-2013), 1/8" NPT (PN 30-2012) and 3/8" NPT (PN 30-2011) water/oil temperature sensor kit. Find the specifications of our fluid temperature sensors below.

  • Accuracy: < 1.5°C / 2.7°F
  • Operating Temp: -20C to 150C / -4F to 302F
  • Resistive Range (?): See Instructions
  • Dissipation Constant: 12 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
  • Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
  • Sensor Body Material: Brass
  • Thread: 1/8" NPT
  • Hex Size: 1/2"
  • Installation Torque: 13.5Nm / 10 ft-lbs
  • Weight: 10g
  • Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals
  • Includes: Water Temp Sensor High Performance DTM-Style, 1/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
SKU 30-2013
Barcode # 840879024161
Brand AEM Electronics
Shipping Weight 0.0590kg
Shipping Width 0.013m
Shipping Height 0.009m
Shipping Length 0.014m
