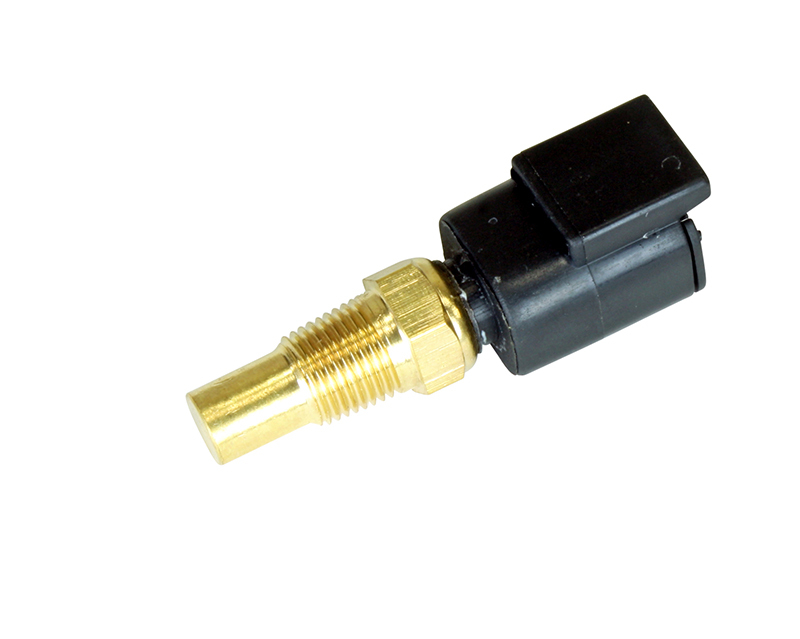

Temperature Sensor with 1/8" NPT Male Thread, Plug, Pins & Pin Lock

AEM offers 1/8" NPT DTM-Style Connector(PN 30-2013), 1/8" NPT (PN 30-2012) and 3/8" NPT (PN 30-2011) water/oil temperature sensor kit. Find the specifications of our fluid temperature sensors below.

  • Accuracy: < 2°C / 3.6°
  • Operating Temp: -40C to 200C / -40F to 392F
  • Resistive Range (?): See Table
  • Dissipation Constant: 12 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
  • Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
  • Sensor Body Material: Brass
  • Thread: 1/8"-27 PTF
  • Hex Size: 1/2"
  • Installation Torque: 13.5Nm / 10 ft-lbs
  • Weight: 12.2g
  • Elec. Termination: Connector. Includes mating connector, pins & pin lock
  • Includes: Water Temp Sensor, Connector, Pins & Pin Lock
SKU 30-2012
Barcode # 840879021795
Brand AEM Electronics
Shipping Weight 0.0544kg
Shipping Width 0.013m
Shipping Height 0.009m
Shipping Length 0.014m
