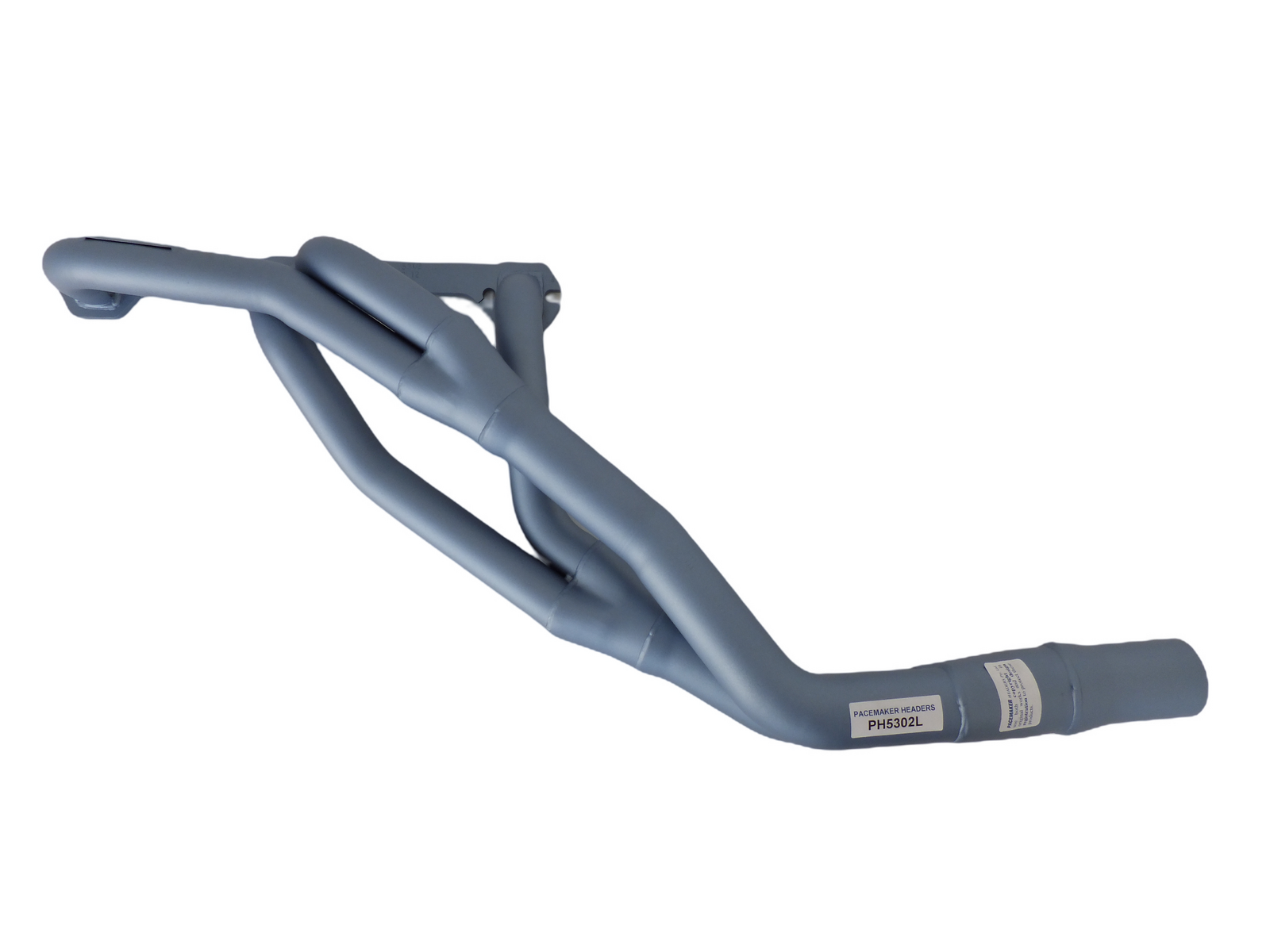

Pacemaker Headers to Suit Holden HK-HT-HG 283, 302, 305, 307, 327, 350, 400 V8 Small Block Chev Motor Manual & Automatic TRI-Y design

Important Notes:

  • Will fit slant plug heads
  • Will fit Powerglide Automatic
  • Will not fit w/ Power Steering

Additional Information:

  • Will fit Turbo 400 Automatic if vehicles floor has been cut for correct fitment of Automatic
  • Will only fit w/ original engine mounting spacers or PACEMAKER spacers Part number Pemp 307Note: spacers must be fitted on correct side of vehicle. (RH spacer is ¼” higher than LH spacer)
  • Will not fit column Automatic unless linkages are modified
  • PH5302 headers are designed to fit w/ genuine factory starter when fitting to a 153 tooth (10 ½”) flex plate (auto only) or 153 tooth (13”) ring gear ( Manual only)
  • PH5302 headers will not fit the genuine factory starter when fitting to 168 tooth (11”) flex plate (auto only) or 168 tooth (14”) ring gear ( Manual only). Pacemaker recommends the use of an after market hi-torque starter. Please choose carefully as not all starter solenoids are in the same position.

Product Specs:

  • Part #: PH 5302
  • P/Steering: No
  • Gasket: DSF 9
  • Air Con: N/A
  • Primary Pipe: 1?" (41mm)
  • Oxy Sen: N/A
  • Secondary Pipe: 2" (51mm)
  • E.G.R: N/A
  • Outlet: 2¼" (57mm)Y
  • Branch: N/A
  • Fitting Time: 3 Hrs
  • Holden HK-HT-HG Chevrolet 283-400 SB V8
SKU PH5302
Brand Pacemaker
Shipping Weight 10.0000kg
Shipping Width 0.650m
Shipping Height 0.250m
Shipping Length 0.200m
